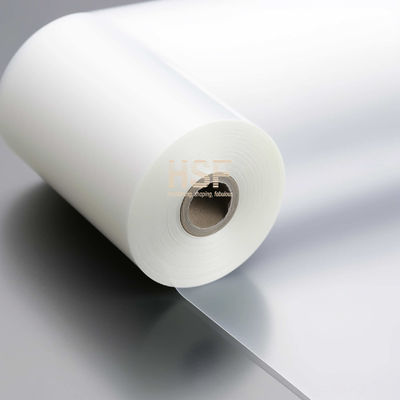

180μm Thermoplastic Urethane Film TPU Film for Medical Device Coating with Matte Surface

Products

High Density Polyethylene Film

Mono Oriented Polypropylene Film

Volatile Corrosion Inhibitor Film

180μm Thermoplastic Urethane Film TPU Film for Medical Device Coating with Matte Surface

MOQ:	10000 s.q.m.
Standard Packaging:	EPE film + PE bag + Processed wooden pallet
Delivery Period:	within 20 days
Payment Method:	T/T,L/C
Supply Capacity:	120000 kg per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

ESSW-15A90

Material:

Thermoplastic Urethane

Color:

White

Surface:

Matte On Both Sides

Thickness:

180 μm

Width:

Up To 1600 Mm

Winding Length:

150 Meters Or So

Sleeve ID:

Minimum Order Quantity:

10000 s.q.m.

Packaging Details:

EPE film + PE bag + Processed wooden pallet

Delivery Time:

within 20 days

Payment Terms:

T/T,L/C

Supply Ability:

120000 kg per week

Highlight:

180um thermoplastic urethane film

medical device coating tpu adhesive film

180um tpu adhesive film

Product Description

180μm Thermoplastic Urethane Film (TPU) for Medical Device Coating

This 180μm thermoplastic urethane film is specifically designed for medical device coating applications, including surgical drapes, gowns, medical packaging, and wound dressings. The thicker material provides enhanced durability and mechanical strength for demanding industrial applications.

Key Applications

Industrial Belting and Conveying: Provides increased strength and wear resistance for conveyor belts, power transmission belts, and lift belts
Inflatable Structures: Offers durability for tents, shelters, and pneumatic structures with resistance to abrasion, punctures, and UV degradation
Automotive and Transportation: Serves as protective films, gaskets, and components with enhanced impact and chemical resistance
Marine and Water Sports Equipment: Provides structural components for inflatable boats, water rafts, dry suits, and marine buoys
Heavy-Duty Protective Covers: Ensures prolonged protection for equipment, machinery, and outdoor furniture
Mining and Agriculture: Offers chemical and abrasion resistance for liners and protective covers in harsh environments

Technical Specifications

Test Item	Test Standard	Measurement Unit	Parameter	Test Result
Width	Tapeline	mm	695±5	700
Thickness	ASTM D3767	mm	0.18±0.01	0.18
Surface	Under the D65 light source, compared with the standard sample visually	/	Side A: Matt, Side B: Dull polish	Frosting
Color		/	Natural color without obvious color difference	Natural
Hardness	ASTM D2240	Shore A	85±3	85
Density	ASTM D792	g/cm³	1.11±0.05	1.1
Gram weight	Gram weight scale	g/cm²	185±10	188
Tensile Strength	ASTM D 412/Die C	MPa	CD: >40 MD: >40	CD: 44.83 MD: 48.33
100% Tensile modulus	ASTM D 412/Die C	MPa	CD: >3 MD: >3	CD: 4.42 MD: 4.57
300% Tensile modulus	ASTM D 412/Die C	MPa	CD: >5.5 MD: >5.5	CD: 8.25 MD: 8.91
Elongation @ break	ASTM D 412/Die C	%	CD: >600 MD: >600	CD: 690 MD: 702
Tearing strength	ASTM D 624	KN/m	CD: >60 MD: >60	CD: 70.42 MD: 68.21
Yellowing resistance rating	ASTM D 1148	Grade	≥4	>4
Flame-retardant rating	GB/T 8410	Grade	A-0	A-0
Tape release force	GB/T 2791	gf/25.4	>380	>400

Product Images
