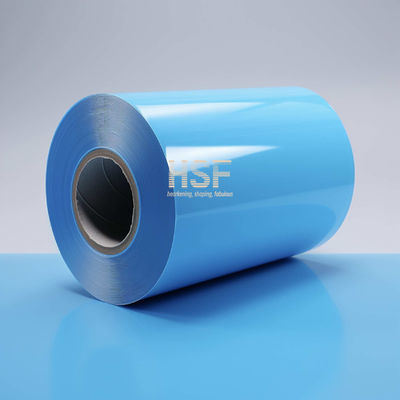

80μm Opaque Blue UV Cured Silicone Release Film for Protective Packaging and Labeling

MOQ:	10000 square meters
Standard Packaging:	PE wrapping film, bubble film, processed wooden pallet
Delivery Period:	within 10 days
Payment Method:	T/T,L/C
Supply Capacity:	500 per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

80OBPES

Material:

High Density Polyethylene

Color:

Transparency:

Opaque

Thickness Deviation:

Plus Minus 5 μm

Width Range:

Up To 2000 Mm

Winding Length:

5000 Meters Or So, Customized

Sleeve ID:

3" Or 6"

Thickness:

40 μm

Minimum Order Quantity:

10000 square meters

Packaging Details:

PE wrapping film, bubble film, processed wooden pallet

Delivery Time:

within 10 days

Payment Terms:

T/T,L/C

Supply Ability:

500 per month

Highlight:

release coating polyester film silicone UV cured

80 micron release coating polyester film

opaque blue release coating polyester film

Product Description

80μm Opaque Blue Release Coating Polyester Film Silicone UV Cured

80 μm opaque blue PE release film, silicone UV cured, designed for protective and packaging applications, tapes, labeling, and graphics.

Product Applications

Adhesive Tapes: Provides a smooth, non-stick surface for easy tape removal and application
Labels and Stickers: Enables easy application and removal without damaging adhesive or surfaces
Graphic Films: Protects adhesive side of vinyl or polyester films during storage, transportation, and application
Medical Applications: Offers sterile, non-stick surface for wound dressings and transdermal patches
Industrial Applications: Prevents sticking or damage during manufacturing of composites, laminates, and other materials

Technical Specifications

No.	Property	Specification	Test Result
1	Appearance	No air bubbles / stains / breakage / impurities	OK
2	Size	Width: 1000 ± 5 mm Thickness: 0.080 ± 0.005 mm	1001 mm 0.082 mm
3	Color	White (Colorimeter △E＜ 3)	OK
4	Tensile Strength (MPa)	TD: ≥ 15 MD: ≥ 15	21 27
5	Elongation @ break (%)	TD: ≥ 230 MD: ≥ 230	962 684
6	Surface Tension (Corona treatment)	Dyne Value ≥42 dyne for each side	42
7	Release Force (gf/25mm 20min.Finat 10)	Inner: 5-10 Outer: 20-30	7 24
8	Subsequent Adhesion (%)	Inner: ≥85 Outer: ≥85	88 90
9	Winding direction	Customized	-
10	Splice No.	≤1	-

Silicone Coating Process

Coating Application Steps

Surface Preparation: Clean polyethylene film surface free from dust, dirt, and contaminants using compatible solvents
Silicone Coating Solution: Prepare silicone polymer or emulsion mixed with suitable solvent or carrier
Coating Application: Apply using roll coating, spray coating, or knife coating methods for even distribution
Drying or Curing: Pass coated film through drying oven or use specified curing methods for proper adhesion
Quality Control: Inspect for defects, measure coating thickness, and conduct adhesion tests
