PRODUCTS DETAILS

Home > Products >

80μm Opaque Green UV Cured PE Silicone Coated Release Film for Protective Packaging and Labeling

Products

High Density Polyethylene Film

Mono Oriented Polypropylene Film

Volatile Corrosion Inhibitor Film

80μm Opaque Green UV Cured PE Silicone Coated Release Film for Protective Packaging and Labeling

MOQ:	10000 square meters
Standard Packaging:	PE wrapping film, bubble film, processed wooden pallet
Delivery Period:	within 10 days
Payment Method:	T/T,L/C
Supply Capacity:	500 per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

80OGPES

Material:

High Density Polyethylene

Color:

Green

Transparency:

Opaque

Thickness Deviation:

Plus Minus 5 μm

Width Range:

Up To 2000 Mm

Winding Length:

5000 Meters Or So, Customized

Sleeve ID:

3" Or 6"

Thickness:

40 μm

Minimum Order Quantity:

10000 square meters

Packaging Details:

PE wrapping film, bubble film, processed wooden pallet

Delivery Time:

within 10 days

Payment Terms:

T/T,L/C

Supply Ability:

500 per month

Highlight:

polyethylene silicone coated release film

PE silicone coated release film

80um silicone coated release film

Product Description

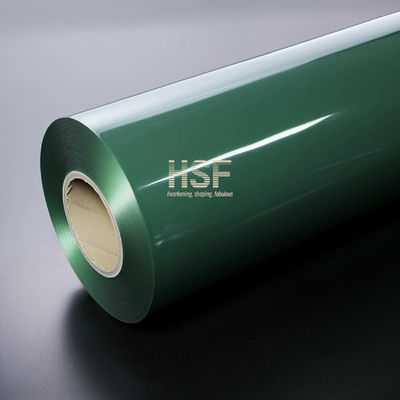

80μm Opaque Green PE Polyethylene Silicone Coated Release Film

This 80 micron opaque green PE silicone coated release film provides superior thickness and durability for demanding applications requiring enhanced protection and support.

Applications

Automotive Industry: Paint protection films, vinyl graphics, and protective coatings offering scratch resistance and durability
Building & Construction: Protective films for windows, doors, roofing systems, and building materials
Medical Products: Wound dressings, transdermal drug delivery systems, and medical tapes providing cushioning and gentle release
Labeling Applications: Enhanced durability and rigidity to prevent tearing or wrinkling during application

Manufacturing Process

Our advanced manufacturing process begins with surface preparation of PE film to ensure optimal silicone adhesion. The silicone coating is applied using precision methods including spraying, dipping, or roll coating, followed by UV curing for superior results.

UV Curing Advantages

Faster processing times compared to traditional heat curing
Energy-efficient and environmentally friendly
Uniform, high-quality silicone coating with excellent adhesion
Superior chemical resistance properties
Preserves substrate integrity throughout production

Release Control Technology

Precise control of stripping ratios is achieved by regulating silicone coating weight on each side of the film. Our process ensures consistent release performance through controlled parameters including coating application, temperature, and solvent systems.

Technical Specifications

No.	Property	Requirement	Test Standard	Result
1	Appearance	No air bubbles / stains / breakage / impurities	Visual Inspection	OK
2	Size	Width: 1000 ± 5 mm Thickness: 0.080 ± 0.005 mm	GB/T 6673 GB/T 6672	1001 mm 0.082 mm
3	Color	White (Colorimeter △E＜ 3)	GB/T 3979 , GB/T 3979	OK
4	Tensile Strength (MPa)	TD: ≥ 15 MD: ≥ 15	GB/T 1040.3	21 27
5	Elongation @ break (%)	TD: ≥ 230 MD: ≥ 230	GB/T 1040.3	962 684
6	Surface Tension (Corona treatment)	≥42 dyne for each side	GB/T 14216	-
7	Release Force (gf/25mm 20min.Finat 10)	Inner: 5-10 Outer: 20-30	GB/T 25256	7 24
8	Subsequent Adhesion (%)	Inner: ≥85 Outer: ≥85	GB/T 25256	88 90
9	Winding direction	Customized	-	-
10	Splice No.	≤1	-	-

Tags:

Products

MOQ:	10000 square meters
Standard Packaging:	PE wrapping film, bubble film, processed wooden pallet
Delivery Period:	within 10 days
Payment Method:	T/T,L/C
Supply Capacity:	500 per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HSF

Model Number

80OGPES

Material:

High Density Polyethylene

Color:

Green

Transparency:

Opaque

Thickness Deviation:

Plus Minus 5 μm

Width Range:

Up To 2000 Mm

Winding Length:

5000 Meters Or So, Customized

Sleeve ID:

3" Or 6"

Thickness:

40 μm

Minimum Order Quantity:

10000 square meters

Packaging Details:

PE wrapping film, bubble film, processed wooden pallet

Delivery Time:

within 10 days

Payment Terms:

T/T,L/C

Supply Ability:

500 per month

Highlight

polyethylene silicone coated release film

PE silicone coated release film

80um silicone coated release film

Product Description

80μm Opaque Green PE Polyethylene Silicone Coated Release Film

This 80 micron opaque green PE silicone coated release film provides superior thickness and durability for demanding applications requiring enhanced protection and support.

Applications

Automotive Industry: Paint protection films, vinyl graphics, and protective coatings offering scratch resistance and durability
Building & Construction: Protective films for windows, doors, roofing systems, and building materials
Medical Products: Wound dressings, transdermal drug delivery systems, and medical tapes providing cushioning and gentle release
Labeling Applications: Enhanced durability and rigidity to prevent tearing or wrinkling during application

Manufacturing Process

UV Curing Advantages

Faster processing times compared to traditional heat curing
Energy-efficient and environmentally friendly
Uniform, high-quality silicone coating with excellent adhesion
Superior chemical resistance properties
Preserves substrate integrity throughout production

Release Control Technology

Technical Specifications

No.	Property	Requirement	Test Standard	Result
1	Appearance	No air bubbles / stains / breakage / impurities	Visual Inspection	OK
2	Size	Width: 1000 ± 5 mm Thickness: 0.080 ± 0.005 mm	GB/T 6673 GB/T 6672	1001 mm 0.082 mm
3	Color	White (Colorimeter △E＜ 3)	GB/T 3979 , GB/T 3979	OK
4	Tensile Strength (MPa)	TD: ≥ 15 MD: ≥ 15	GB/T 1040.3	21 27
5	Elongation @ break (%)	TD: ≥ 230 MD: ≥ 230	GB/T 1040.3	962 684
6	Surface Tension (Corona treatment)	≥42 dyne for each side	GB/T 14216	-
7	Release Force (gf/25mm 20min.Finat 10)	Inner: 5-10 Outer: 20-30	GB/T 25256	7 24
8	Subsequent Adhesion (%)	Inner: ≥85 Outer: ≥85	GB/T 25256	88 90
9	Winding direction	Customized	-	-
10	Splice No.	≤1	-	-
