75μm Clear PET Fluorosilicone Release Film with Resistance to Oils, Solvents, and Chemicals

Products

High Density Polyethylene Film

Mono Oriented Polypropylene Film

Volatile Corrosion Inhibitor Film

75μm Clear PET Fluorosilicone Release Film with Resistance to Oils, Solvents, and Chemicals

MOQ:	10000 s.q.m
Standard Packaging:	EPE film + PE wrap + Processed wooden pallet
Delivery Period:	within 45 days depends on the reserve of raw materials
Payment Method:	T/T,L/C
Supply Capacity:	100000 kg per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

75TPF-05

Material:

Polyethylene Terephthalate

Color:

Natural

Transparency:

Clear

Thickness:

75 μm

Thickness Deviation:

Plus Minus 5 μm

Sleeve ID:

Winding Direction:

Silicone Coated Side Wound In

Winding Length:

3000 Meters Or So

Minimum Order Quantity:

10000 s.q.m

Packaging Details:

EPE film + PE wrap + Processed wooden pallet

Delivery Time:

within 45 days depends on the reserve of raw materials

Payment Terms:

T/T,L/C

Supply Ability:

100000 kg per week

Highlight:

75um PET fluorosilicone coated release film

solvents resistance fluorosilicone coated release film

chemicals resistance fluorosilicone coated release film

Product Description

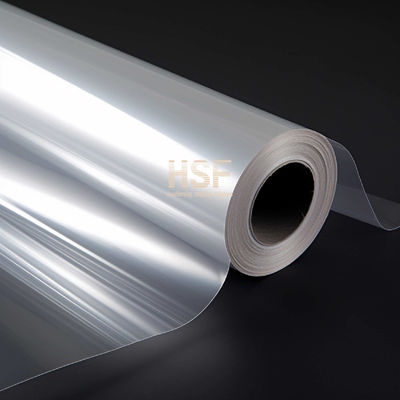

75μm Clear PET Fluorosilicone Coated Release Film

75 μm clear PET fluorosilicone coated release film with excellent release properties and resistance to oils, solvents, and chemicals.

Product Applications

Adhesive Tapes and Films: Backing material for double-sided tapes, masking tapes, and adhesive films with easy alignment and excellent release properties
Industrial Manufacturing: Protective layer for surfaces, tools, and equipment during manufacturing, assembly, and transportation
Die-Cutting and Converting: Base material for custom-shaped labels, stickers, and components with clean, precise release
Composite Material Manufacturing: Release liner or barrier layer in resin infusion, vacuum bagging, and composite layup processes
Protective Films and Laminates: Durable protective layer against scratches, abrasion, and moisture with easy residue-free removal
Graphic Arts and Printing: Protective layer for decals, graphics, and signage during transportation and installation
Medical and Healthcare: Protective layer for medical devices, diagnostic tools, and wound dressings with aseptic removal

Technical Specifications

Test Item	Unit	Range
Fluorosilicone Release Side	g/25mm	5-8
Backing Liner (Clear PET)	mm	0.075 ± 0.003
Width	mm	1040 ± 5
Length	m	2000 ±200
Color	-	Transparent
Sub-Adhesion Rate	%	≧85

Release Force Testing Parameters

Tape	MY2G
Speed	300mm/min
Angle	180°
Instrument	5000g range tensile machine
Environment	30 min. at room temperature, after attaching

Subsequent Adhesion Rate Testing

Tape	NITTO 31B
Aging Environment	70℃
Aging Time	20h
Time in normal temperature	4h
Instrument	5000g range tensile machine

Storage Conditions

Storage Temperature	15-35℃ (in original packing status)
Storage Humidity	30-70% (in original packing status)

Product Images
