12μm Red PET Fluorosilicone Coated Release Film with Chemical Resistance for High-Temperature Applications

MOQ:	10000 s.q.m
Standard Packaging:	EPE film + PE wrap + Processed wooden pallet
Delivery Period:	within 45 days depends on the reserve of raw materials
Payment Method:	T/T,L/C
Supply Capacity:	100000 kg per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

12RPF-05

Material:

Polyethylene Terephthalate

Color:

Transparency:

Translucent

Thickness:

12 μm

Thickness Deviation:

Plus Minus 5 μm

Sleeve ID:

Winding Direction:

Silicone Coated Side Wound In

Winding Length:

6000 Meters Or So

Minimum Order Quantity:

10000 s.q.m

Packaging Details:

EPE film + PE wrap + Processed wooden pallet

Delivery Time:

within 45 days depends on the reserve of raw materials

Payment Terms:

T/T,L/C

Supply Ability:

100000 kg per week

Highlight:

12 micron Fluorosilicone Release Liner

12 micron PET Fluorosilicone Release Liner

PET Release Liner Silicone coated

Product Description

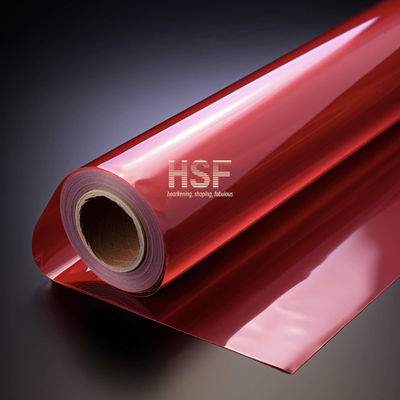

12μm Red PET Fluorosilicone Release Liner

This 12μm red PET fluorosilicone coated release film offers excellent release properties with superior resistance to oils, solvents, and chemicals. The silicone coated side is wound in for optimal protection and performance.

Product Overview

PET fluorosilicone coated release film is widely used across packaging, labeling, medical, automotive, and electronics industries due to its exceptional release performance and chemical resistance properties.

Key Advantages vs Standard PET Silicone Film

Release Properties

Superior release performance with low coefficient of friction, providing exceptional release with various adhesives even in high-temperature and high-humidity environments.

Chemical Resistance

Excellent resistance to oils, solvents, and chemicals, making it ideal for harsh chemical environments.

Temperature Resistance

Wider temperature range resistance, performing excellently in high-temperature and high-humidity conditions for automotive and electronics applications.

Adhesion Properties

Excellent adhesion to various substrates including plastics, metals, and glass, with strong bonding performance for demanding applications.

Application Scenarios

Electronics and Semiconductor Industries: Protection for sensitive components during manufacturing
Optical Films and Displays: Temporary protective layer for touchscreens and display panels
Microelectronics and MEMS Devices: Release liner for delicate components
Precision Die-Cutting and Stamping: Liner for intricate die-cut parts
Medical and Biotechnology: Delicate release liner for medical devices and diagnostic components

Technical Specifications

Test Item	Unit	Range
Fluorosilicone Release Side	g/25mm	5-8
Backing Liner (Clear PET)	mm	0.012 ± 0.002
Width	mm	1040 ± 5
Length	m	2000 ±200
Color	-	Transparent
Sub-Adhesion Rate	%	≧85

Release Force Classification

Release Force	Classification
< 0.10N/25mm (< 10g)	Light Peel
0.03-0.04N/25mm (3-4g)	Very Light Release
< 0.20N/25mm (< 20g)	Medium Release
0.35-0.45N/25mm (35-45g)	Heavy Release
0.60-0.80N/25mm (60-80g)	Very Heavy Release
> 1.00N/25mm (> 100g)	Super Heavy Release

Product Images

Note: A qualified fluorosilicone release film features a smooth, even surface free from defects, excellent physical mechanical properties, small thickness tolerance, high transparency, low heat shrinkage, and good flexibility.
