PRODUCTS DETAILS

Home > Products >

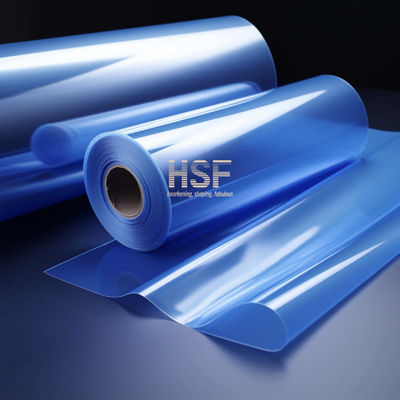

20μm Blue Translucent Anti Static Film for Electronics and Medical Packaging

Products

High Density Polyethylene Film

Mono Oriented Polypropylene Film

Volatile Corrosion Inhibitor Film

20μm Blue Translucent Anti Static Film for Electronics and Medical Packaging

MOQ:	30000 s.q.m.
Standard Packaging:	EPE film + PE wrap + Processed wooden pallet
Delivery Period:	within 45 days, depends on the reserve of raw materials
Payment Method:	T/T,L/C
Supply Capacity:	30000 kg per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

23B1AS-SS

Material:

Polyethylene Terephthalate

Color:

Transparency:

Translucent

Thickness:

20 μm

Thickness Deviation:

Plus Minus 3 μm

Width Range:

Up To 1360

Sleeve ID:

Winding Length:

16000 Meters Or So

Minimum Order Quantity:

30000 s.q.m.

Packaging Details:

EPE film + PE wrap + Processed wooden pallet

Delivery Time:

within 45 days, depends on the reserve of raw materials

Payment Terms:

T/T,L/C

Supply Ability:

30000 kg per week

Highlight:

clear Blue anti static shrink film

anti static shrink film 20um

Translucent Blue static cling protective film

Product Description

Clear Blue Static Cling Protective Anti Static Shrink Film 20μm

20 μm blue PET anti static film, available in multiple colors, designed for electronics, medical, automotive, and printing applications.

Technical Specifications

S/N	Item	Value	Test Method
1	Backing Film Type	Blue PET	DIN EN ISO 10677
2	Release Force (gf/25mm)	8	DIN EN 1464
3	Sub-sequent Adhesion Rate (%)	89	DIN EN 1943
4	Total Thickness (μm)	20	DIN EN ISO 4593
5	Sheet Resistance	10^6-10^11 Ω/sq	DIN EN 1149-1
6	Tensile Strength	MD: 198 MPa TD: 216 MPa	DIN EN ISO 527-3
7	Elongation @ break (%)	MD: 107% TD: 96%	DIN EN ISO 527-3

Application Areas

Optics and Lens Protection: Protects lenses, camera filters, and optical equipment from static charges that attract dust or cause scratches, ensuring clear optics with minimal maintenance.
Graphic Design and Printing: Provides protective covering during production and transportation of printed materials, preventing static-related issues like ink smudging or paper sticking.
Stationery and Packaging: Serves as protective layer for notebooks, folders, and packaging boxes, preventing static charges while adding aesthetic appeal through blue coloration.
Electronic Component Manufacturing: Protects PCBs and sensitive electronic circuits from static damage during handling and assembly processes.
Museum Exhibitions: Protects delicate artifacts and displays from static charges that could attract dust or cause damage to valuable objects.

Please note that suitability for specific applications should be verified based on industry requirements, manufacturer guidelines, and available customization options.

Key Features

The primary feature of PET anti-static coated film is its ability to prevent static electricity buildup. With a conductive coating on one or both sides, charges dissipate effectively, preventing static accumulation. This results in improved handling, processing, and protection of sensitive components and products.

While transparent or translucent films are commonly used, various colors including pink, blue, and yellow are available for identification purposes and quality control differentiation.

Manufacturing Process

The coating process involves unwinding PET film from its original roll and passing it through a coating applicator that applies antistatic fluid. Various coating methods such as gravure, reverse gravure, Mayer rod, or air knife are employed based on fluid viscosity and desired coating thickness.

Following coating application, the film passes through a drying oven to remove solvents, after which it is rewound onto new rolls. Process effectiveness depends on antistatic fluid type and compatibility with PET film, requiring careful control to maintain consistent coating thickness and avoid defects.
