Translucent Green Anti Static Coated PET Film with 20μm Thickness for Electronics and Medical Packaging

Products

High Density Polyethylene Film

Mono Oriented Polypropylene Film

Volatile Corrosion Inhibitor Film

Translucent Green Anti Static Coated PET Film with 20μm Thickness for Electronics and Medical Packaging

MOQ:	30000 s.q.m.
Standard Packaging:	EPE film + PE wrap + Processed wooden pallet
Delivery Period:	within 45 days, depends on the reserve of raw materials
Payment Method:	T/T,L/C
Supply Capacity:	30000 kg per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

23G1AS-SS

Material:

Polyethylene Terephthalate

Color:

Green

Transparency:

Translucent

Thickness:

20 μm

Thickness Deviation:

Plus Minus 3 μm

Width Range:

Up To 1360

Sleeve ID:

Winding Length:

16000 Meters Or So

Minimum Order Quantity:

30000 s.q.m.

Packaging Details:

EPE film + PE wrap + Processed wooden pallet

Delivery Time:

within 45 days, depends on the reserve of raw materials

Payment Terms:

T/T,L/C

Supply Ability:

30000 kg per week

Highlight:

Translucent Green anti static pet film

anti static protective pet film

static protective film 20 micron

Product Description

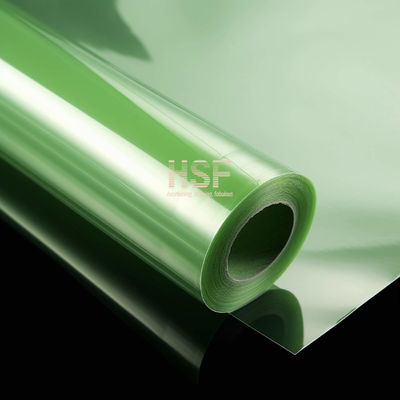

Translucent Green Anti Static Protective PET Film 20μm

20 μm green PET anti static film, available in multiple colors, designed for electronics, medical, automotive, printing, and various industrial applications.

Technical Specifications

S/N	Item	Value	Test Method
1	Backing Film Type	Blue Green	DIN EN ISO 10677
2	Release Force (gf/25mm)	8	DIN EN 1464
3	Sub-sequent Adhesion Rate (%)	89	DIN EN 1943
4	Total Thickness (μm)	20	DIN EN ISO 4593
5	Sheet Resistance	10^6-10^11 Ω/sq	DIN EN 1149-1
6	Tensile Strength	MD: 193 MPa TD: 210 MPa	DIN EN ISO 527-3
7	Elongation @ break (%)	MD: 109% TD: 97%	DIN EN ISO 527-3

Industry Applications

PET anti-static coated film provides excellent static discharge properties for various industrial applications:

Electronics

Protects sensitive electronic components and circuits from static discharge damage during production and handling.

Medical

Prevents static buildup in medical packaging to maintain sterility by reducing dust and contaminant attraction.

Automotive

Provides static discharge protection for automotive parts and components during manufacturing processes.

Printing

Prevents static electricity buildup during printing operations, ensuring proper ink adhesion and print quality.

Tape Industry

Serves as release liner for adhesive tapes, preventing static buildup within tape rolls.

Key Features

Conductive coating on one or both sides for effective static dissipation
Prevents static electricity buildup
Improves handling and processing of sensitive components
Available in multiple colors for identification and quality control
Standard colors include transparent, translucent, pink, blue, and yellow

Specialized Applications

Jewelry and Gemstone Industry: Protects delicate gemstones from static charges that attract dust or cause surface damage
Stationery and Paper Goods: Provides protective covering for documents and artwork while minimizing static-related issues
Textile and Apparel Manufacturing: Prevents static charges that attract lint and fibers during fabric production
Cosmetics and Personal Care: Protects cosmetic containers from static interference with product dispensing
Food Packaging: Safeguards static-sensitive food items like powders and delicate snacks

Please verify the suitability of 20-micron green PET anti-static film for specific applications based on industry requirements, manufacturer guidelines, and available customization options.
