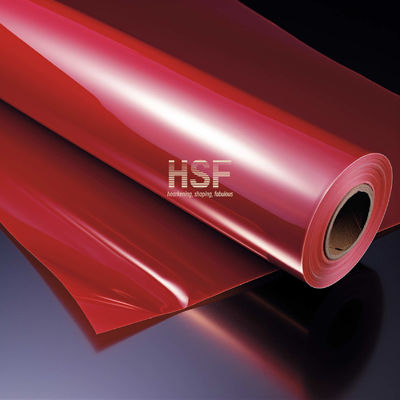

23μm Translucent Red Polyethylene Terephthalate Anti Static Film for Electronics and Automotive

Products

High Density Polyethylene Film

Mono Oriented Polypropylene Film

Volatile Corrosion Inhibitor Film

23μm Translucent Red Polyethylene Terephthalate Anti Static Film for Electronics and Automotive

MOQ:	30000 s.q.m.
Standard Packaging:	EPE film + PE wrap + Processed wooden pallet
Delivery Period:	within 45 days, depends on the reserve of raw materials
Payment Method:	T/T,L/C
Supply Capacity:	30000 kg per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

23R1AS-SS

Material:

Polyethylene Terephthalate

Color:

Transparency:

Translucent

Thickness:

23 μm

Thickness Deviation:

Plus Minus 3 μm

Width Range:

Up To 1360

Sleeve ID:

Winding Length:

16000 Meters Or So

Minimum Order Quantity:

30000 s.q.m.

Packaging Details:

EPE film + PE wrap + Processed wooden pallet

Delivery Time:

within 45 days, depends on the reserve of raw materials

Payment Terms:

T/T,L/C

Supply Ability:

30000 kg per week

Highlight:

Polyethylene terephthalate anti static stretch film

Translucent Red anti static stretch film

23um anti static stretch film

Product Description

23μm Translucent Red Polyethylene Terephthalate Anti Static Stretch Film

23 μm Red PET anti-static film provides excellent static discharge properties for electronics, medical, automotive, and printing applications. Available in multiple colors to suit various industry requirements.

Technical Specifications

S/N	Item	Value	Test Method
1	Backing Film Type	Red PET	DIN EN ISO 10677
2	Release Force (gf/25mm)	11	DIN EN 1464
3	Sub-sequent Adhesion Rate (%)	91	DIN EN 1943
4	Total Thickness (μm)	23	DIN EN ISO 4593
5	Sheet Resistance	10^6-10^11 Ω/sq	DIN EN 1149-1
6	Tensile Strength	MD: 198 MPa TD: 201 MPa	DIN EN ISO 527-3
7	Elongation @ break (%)	MD: 103% TD: 91%	DIN EN ISO 527-3

Key Applications

Automotive Interiors: Protective layer for dashboards, door panels, and seat covers with anti-static properties and vibrant red color
Electrical Equipment Manufacturing: Protective barrier for sensitive components to prevent static charge accumulation
Entertainment and Event Industry: Decorative elements for stages and props with reduced dust attraction
Safety Signage and Markings: Durable anti-static labels and warning tapes for industrial safety applications
Sporting Goods Manufacturing: Protective layer for helmets, pads, and gear bags with sporty aesthetic

Product Features

PET anti-static coated film prevents static electricity buildup through conductive coating on one or both sides, allowing charges to dissipate effectively. This improves handling, processing, and protection of sensitive components.

While transparent or translucent films are commonly used, various colors including pink, blue, and yellow are available for identification and quality control purposes.

Manufacturing Process

The coating process involves unwinding PET film and applying antistatic fluid using gravure, reverse gravure, Mayer rod, or air knife methods. The film then passes through a drying oven to remove solvents before being rewound. Process control ensures consistent coating thickness and product quality.
