23μm Green Static Cling Protective Anti Static Film 1360mm for Electronics and Medical Packaging
  • name
  • name
  • name

23μm Green Static Cling Protective Anti Static Film 1360mm for Electronics and Medical Packaging

MOQ: 30000 s.q.m.
Standard Packaging: EPE film + PE wrap + Processed wooden pallet
Delivery Period: within 45 days, depends on the reserve of raw materials
Payment Method: T/T,L/C
Supply Capacity: 30000 kg per week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HSF
Model Number
23G1AS-SS
Material:
Polyethylene Terephthalate
Color:
Green
Transparency:
Translucent
Thickness:
23 μm
Thickness Deviation:
Plus Minus 3 μm
Width Range:
Up To 1360mm
Sleeve ID:
6"
Winding Length:
16000 Meters Or So
Minimum Order Quantity:
30000 s.q.m.
Packaging Details:
EPE film + PE wrap + Processed wooden pallet
Delivery Time:
within 45 days, depends on the reserve of raw materials
Payment Terms:
T/T,L/C
Supply Ability:
30000 kg per week
Highlight:

23um green anti static plastic film

,

anti static plastic film 1360mm

,

23um green static cling protective film

Product Description
23μm Green Static Cling Protective Anti Static Plastic Film 1360mm
23 μm green PET anti static film, available in multiple colors, designed for electronics, medical, automotive, printing, and various industrial applications.
Technical Specifications
S/N Item Value Test Method
1 Backing Film Type Green PET DIN EN ISO 10677
2 Release Force (gf/25mm) 8 DIN EN 1464
3 Sub-sequent Adhesion Rate (%) 91 DIN EN 1943
4 Total Thickness (μm) 23 DIN EN ISO 4593
5 Sheet Resistance 10^6-10^11 Ω/sq DIN EN 1149-1
6 Tensile Strength MD: 191 MPa
TD: 203 MPa		 DIN EN ISO 527-3
7 Elongation @ break (%) MD: 105%
TD: 93%		 DIN EN ISO 527-3
PET anti-static coated film is widely used across multiple industries due to its excellent static discharge properties and protective capabilities.
Industry Applications
Electronics
Used in electronic component production to prevent static discharge that can damage sensitive circuits and components.
Medical
Applied in medical packaging to prevent static electricity buildup that can attract contaminants and compromise product sterility.
Automotive
Utilized in automotive parts manufacturing for protection against static discharge in sensitive components.
Printing
Prevents static electricity buildup during printing processes, ensuring proper ink adhesion and print quality.
Tape Industry
Serves as release liner in adhesive tape manufacturing, preventing static buildup within tape rolls.
Specialized Application Scenarios
  • Horticulture and Plant Nurseries: Protective covering for potted plants and seedlings with anti-static properties that repel dust and maintain plant cleanliness.
  • Pharmaceutical Packaging: Protective layer for static-sensitive medications, preventing contamination and ensuring product integrity.
  • Museum and Artifact Preservation: Protective barrier for delicate artifacts and historical documents, preventing static-related damage.
  • Automotive Aftermarket: Protective layer during installation of interior components, preventing dust accumulation and static issues.
  • Sports Equipment Manufacturing: Protective layer for sports equipment, preventing static charge buildup that could affect performance.
Key Features
The primary feature of PET anti-static coated film is its ability to prevent static electricity buildup through conductive coating on one or both sides, allowing charges to dissipate effectively. This results in improved handling, processing, and protection of sensitive components.
Available in various colors including transparent, pink, blue, and yellow for identification and quality control purposes.
Manufacturing Process
PET film is unwound and passed through a coating applicator using methods such as gravure, reverse gravure, Mayer rod, or air knife. The coated film then passes through a drying oven to remove solvents before being rewound. Process control ensures consistent coating thickness and product quality.
Product Images

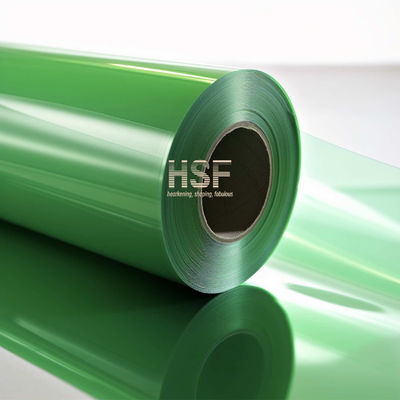

23μm Green Static Cling Protective Anti Static Film 1360mm for Electronics and Medical Packaging 0 23μm Green Static Cling Protective Anti Static Film 1360mm for Electronics and Medical Packaging 1
