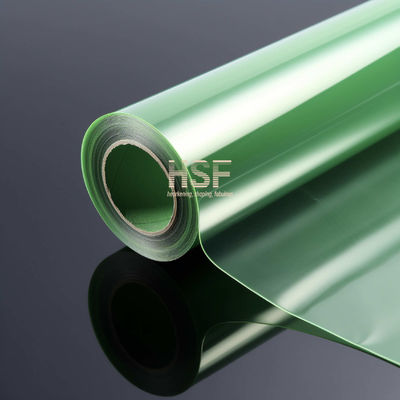

36μm Green Translucent Anti Static PET Film for Electronics and Medical Packaging
  • name
  • name
  • name

36μm Green Translucent Anti Static PET Film for Electronics and Medical Packaging

MOQ: 30000 s.q.m.
Standard Packaging: EPE film + PE wrap + Processed wooden pallet
Delivery Period: within 45 days, depends on the reserve of raw materials
Payment Method: T/T,L/C
Supply Capacity: 30000 kg per week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HSF
Model Number
36G1AS-SS
Material:
Polyethylene Terephthalate
Color:
Green
Transparency:
Translucent
Thickness:
36 μm
Thickness Deviation:
Plus Minus 3 μm
Width Range:
Up To 1360
Sleeve ID:
6"
Winding Length:
8000 Meters Or So
Minimum Order Quantity:
30000 s.q.m.
Packaging Details:
EPE film + PE wrap + Processed wooden pallet
Delivery Time:
within 45 days, depends on the reserve of raw materials
Payment Terms:
T/T,L/C
Supply Ability:
30000 kg per week
Highlight:

clear green Anti Static Film

,

Translucent green polyethylene terephthalate pet film

,

Anti Static polyethylene terephthalate pet film

Product Description
Clear Green Anti Static Film Polyethylene Terephthalate PET Film
36 μm green PET anti static film, available in many colors, for electronics, medical, automotive and printing applications.
Technical Specifications
S/N Item Value Test Method
1 Backing Film Type Green PET  DIN EN ISO 10677
2 Release Force (gf/25mm) 10 DIN EN 1464
3 Sub-sequent Adhesion Rate (%) 94 DIN EN 1943
4 Total Thickness (μm) 36 DIN EN ISO 4593
5 Sheet Resistance 10^6-10^11 Ω/sq DIN EN 1149-1
6 Tensile Strength MD: 196 MPa
TD: 207 MPa		 DIN EN ISO 527-3
7 Elongation @ break (%) MD: 112%
TD: 103%		 DIN EN ISO 527-3
PET anti-static coated film finds its application in a variety of industries including electronics, medical, automotive, and printing due to its excellent static discharge properties.
Industry Applications
Electronics
PET anti-static coated film is commonly used in the production of electronic components and devices to prevent static discharge, which can cause damage to sensitive circuits and components.
Medical
PET anti-static coated film is used in medical packaging to prevent the buildup of static electricity, which can attract dust and other contaminants that can compromise the sterility of medical products.
Automotive
Anti-static coated film can be used in the manufacture of automotive parts and components that require protection against static discharge.
Printing
PET anti-static coated film is used in the printing industry to prevent static electricity buildup on the film during the printing process, which can cause issues with ink adhesion and other printing problems.
Tape Industry
Clear PET anti-static film is also commonly used in the tape industry for the manufacture of adhesive tapes, where it serves as the release liner, and helps to prevent static buildup within the tape rolls.
Specialized Application Scenarios
  • Green Technology and Sustainable Packaging
  • Horticulture and Plant Care
  • Agricultural and Farming Industry
  • Sporting Goods and Outdoor Equipment
  • Educational and Science Projects
Please note that the suitability of the 36 μm green PET anti-static film for specific applications should be verified based on industry requirements, manufacturer guidelines, and customization options available.
Key Features
The main feature of PET anti-static coated film is its ability to prevent the buildup of static electricity. It has a conductive coating on one or both sides of the film, which allows charges to dissipate and prevents static buildup. This results in improved handling, processing, and protection of sensitive components and products.
The main colors of the film commonly used in application scenarios are transparent or translucent (colorless). However, other colors such as pink, blue, and yellow may also be used, depending on the application. The color is mainly used for identification purposes to differentiate between different types of films and facilitate quality control.
Manufacturing Process
To coat an antistatic fluid onto an already produced PET film, the PET film is first unwound from its original roll and passed through a coating applicator that applies the antistatic fluid to the film's surface. This can be done using various coating methods such as gravure, reverse gravure, Mayer rod or air knife, depending on the viscosity of the antistatic fluid and the desired coating thickness.
After the coating process, the PET film is then passed through a drying oven to remove the solvent from the antistatic fluid. Once the solvent is evaporated, the film is rewound onto a new roll.
It is important to note that the effectiveness of this coating process depends on the type of antistatic fluid used and its compatibility with the PET film. The process should also be carefully controlled to maintain a consistent coating thickness and avoid any defects or inconsistencies in the final product.
36μm Green Translucent Anti Static PET Film for Electronics and Medical Packaging 0 36μm Green Translucent Anti Static PET Film for Electronics and Medical Packaging 1
