Translucent Blue 50 μm Anti Static PET Film for Static Discharge Protection in Electronics and Medical Packaging
  • name
  • name
  • name

Translucent Blue 50 μm Anti Static PET Film for Static Discharge Protection in Electronics and Medical Packaging

MOQ: 30000 s.q.m.
Standard Packaging: EPE film + PE wrap + Processed wooden pallet
Delivery Period: within 45 days, depends on the reserve of raw materials
Payment Method: T/T,L/C
Supply Capacity: 30000 kg per week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HSF
Model Number
50B1AS-SS
Material:
Polyethylene Terephthalate
Color:
Blue
Transparency:
Translucent
Thickness:
50 μm
Thickness Deviation:
Plus Minus 3 μm
Width Range:
Up To 1360
Sleeve ID:
6"
Winding Length:
8000 Meters Or So
Minimum Order Quantity:
30000 s.q.m.
Packaging Details:
EPE film + PE wrap + Processed wooden pallet
Delivery Time:
within 45 days, depends on the reserve of raw materials
Payment Terms:
T/T,L/C
Supply Ability:
30000 kg per week
Highlight:

Translucent Blue anti static polyester film

,

anti static protective polyester film

,

Translucent Blue anti static protective film

Product Description

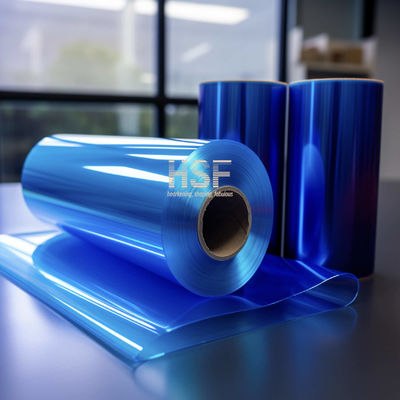

Translucent Blue Anti Static Protective Polyester Film
Technical Specifications
S/N Item Value Test Method
1 Backing Film Type Blue PET  DIN EN ISO 10677
2 Release Force (gf/25mm) 8 DIN EN 1464
3 Sub-sequent Adhesion Rate (%) 89 DIN EN 1943
4 Total Thickness (μm) 50 DIN EN ISO 4593
5 Sheet Resistance 10^6-10^11 Ω/sq DIN EN 1149-1
6 Tensile Strength MD: 187 N/mm²
TD: 196 N/mm²		 DIN EN ISO 527-3
7 Elongation @ break (%) MD: 148%
TD: 139%		 DIN EN ISO 527-3
Product Overview
PET anti-static coated film is engineered for superior static discharge protection across multiple industries including electronics, medical, automotive, and printing applications.
Industry Applications
Electronics Manufacturing
Provides essential protection for sensitive electronic components and circuits by preventing static discharge damage during production and handling.
Medical Packaging
Maintains product sterility by preventing static electricity buildup that could attract dust and contaminants in medical packaging applications.
Automotive Components
Safeguards automotive parts and electronic components against static discharge during manufacturing and assembly processes.
Printing Industry
Prevents static electricity buildup during printing operations, ensuring optimal ink adhesion and print quality.
Tape Manufacturing
Serves as release liner in adhesive tape production, preventing static buildup within tape rolls for improved processing.
Specialized Application Scenarios
  • Aerospace and Defense: Protects sensitive electronic components, wiring harnesses, and control panels in aircraft, satellites, and military equipment
  • Data Centers: Provides essential static protection for server racks, cable management systems, and storage devices
  • Automotive Manufacturing: Safeguards electronic components including sensors, control modules, and infotainment systems
  • Photovoltaic Industry: Acts as protective backsheet for solar panels, ensuring static charge dissipation and visual appeal
  • Research Laboratories: Protects sensitive electronic instruments and equipment from static interference
Key Features
The primary feature of PET anti-static coated film is its ability to prevent static electricity buildup through conductive coatings on one or both film surfaces. This allows charges to dissipate effectively, resulting in improved handling, processing, and protection of sensitive components.
Available in transparent or translucent formats with color options including pink, blue, and yellow for identification and quality control purposes.
Manufacturing Process
PET film is unwound and passed through coating applicators using gravure, reverse gravure, Mayer rod, or air knife methods. The coated film then undergoes drying to remove solvents before rewinding. Process control ensures consistent coating thickness and product quality.
Translucent Blue 50 μm Anti Static PET Film for Static Discharge Protection in Electronics and Medical Packaging 0
Translucent Blue 50 μm Anti Static PET Film for Static Discharge Protection in Electronics and Medical Packaging 1
Tags:

Anti Static Film,

static protective film,

PET anti static protective film
