50μm Red Anti Static PET Release Film for Electronics Medical and Automotive Applications

MOQ: 30000 s.q.m.
Standard Packaging: EPE film + PE wrap + Processed wooden pallet
Delivery Period: within 45 days, depends on the reserve of raw materials
Payment Method: T/T,L/C
Supply Capacity: 30000 kg per week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HSF
Model Number
50R1AS-SS
Material:
Polyethylene Terephthalate
Color:
Red
Transparency:
Translucent
Thickness:
50 μm
Thickness Deviation:
Plus Minus 3 μm
Width Range:
Up To 1360
Sleeve ID:
6"
Winding Length:
8000 Meters Or So
Minimum Order Quantity:
30000 s.q.m.
Packaging Details:
EPE film + PE wrap + Processed wooden pallet
Delivery Time:
within 45 days, depends on the reserve of raw materials
Payment Terms:
T/T,L/C
Supply Ability:
30000 kg per week
Highlight:

50um Red PET Anti Static Film

,

PET release film For Electronics

,

50um Red pet release film

Product Description
50μm Red Anti Static PET Release Film
50 μm red PET anti static film, available in multiple colors, designed for electronics, medical, automotive, and printing applications.
Technical Specifications
S/N Item Value Test Method
1 Backing Film Type PET GB/T 46019.1-2025
2 Release Force (gf/25mm) 8 GB/T 25256
3 Sub-sequent Adhesion Rate (%) 89 GB/T 25256
4 Total Thickness (μm) 50.2 ± 3% GB/T 6672
5 Sheet Resistance (Ω/sq) 10^6-10^11  GB/T 12703.4
6 Tensile Strength MD: 187 N/mm²
TD: 196 N/mm²		 GB/T 1040.3
7 Elongation @ break (%) MD: 148%
TD: 139%		 GB/T 1040.3
Applications and Features
PET anti-static coated film provides excellent static discharge properties for various industrial applications.
Industry Applications
  • Electronics: Protects sensitive circuits and components from static discharge damage during production
  • Medical: Prevents static buildup in medical packaging to maintain product sterility
  • Automotive: Provides static discharge protection for automotive parts and components
  • Printing: Prevents static electricity buildup during printing processes for better ink adhesion
  • Tape Industry: Serves as release liner in adhesive tape manufacturing to prevent static buildup
Key Features
  • Conductive coating on one or both sides for effective charge dissipation
  • Prevents static electricity buildup for improved handling and processing
  • Available in multiple colors (transparent, pink, blue, yellow) for identification and quality control
  • Enhanced protection for sensitive components and products
Manufacturing Process
PET film is unwound and passed through coating applicators using gravure, reverse gravure, Mayer rod, or air knife methods. The coated film then undergoes drying to remove solvents before being rewound. Process control ensures consistent coating thickness and product quality.

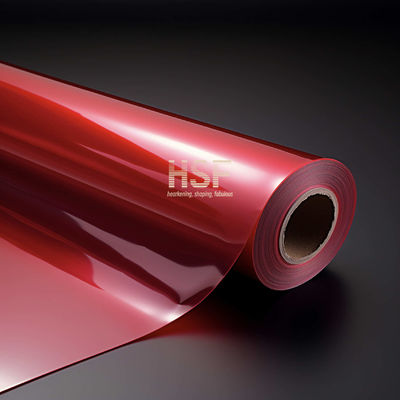

Product Images
50μm Red Anti Static PET Release Film for Electronics Medical and Automotive Applications 0 50μm Red Anti Static PET Release Film for Electronics Medical and Automotive Applications 1
