50μm Green PET Anti Static Film 1360mm Wide Polyester Film for Electronics and Medical Packaging
  • name
  • name
  • name

50μm Green PET Anti Static Film 1360mm Wide Polyester Film for Electronics and Medical Packaging

MOQ: 30000 s.q.m.
Standard Packaging: EPE film + PE wrap + Processed wooden pallet
Delivery Period: within 45 days, depends on the reserve of raw materials
Payment Method: T/T,L/C
Supply Capacity: 30000 kg per week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HSF
Model Number
50G1AS-SS
Material:
Polyethylene Terephthalate
Color:
Green
Transparency:
Translucent
Thickness:
50 μm
Thickness Deviation:
Plus Minus 3 μm
Width Range:
Up To 1360mm
Sleeve ID:
6"
Winding Length:
8000 Meters Or So
Minimum Order Quantity:
30000 s.q.m.
Packaging Details:
EPE film + PE wrap + Processed wooden pallet
Delivery Time:
within 45 days, depends on the reserve of raw materials
Payment Terms:
T/T,L/C
Supply Ability:
30000 kg per week
Highlight:

50um green PET Anti Static Film

,

50um coated polyester film

,

coated polyester film 1360mm

Product Description
50μm Green PET Anti Static Film Coated Polyester Film 1360mm
50 μm green PET anti static film, available in multiple colors, designed for electronics, medical, automotive, printing, and various industrial applications.
Technical Specifications
S/N Item Value Test Method
1 Backing Film Type Green PET DIN EN ISO 10677
2 Release Force (gf/25mm) 9 DIN EN 1464
3 Sub-sequent Adhesion Rate (%) 93 DIN EN 1943
4 Total Thickness (μm) 50 DIN EN ISO 4593
5 Sheet Resistance 10^6-10^11 Ω/sq DIN EN 1149-1
6 Tensile Strength MD: 187 MPa
TD: 196 MPa		 DIN EN ISO 527-3
7 Elongation @ break (%) MD: 113%
TD: 98%		 DIN EN ISO 527-3
Industry Applications
Electronics Manufacturing
PET anti-static coated film is essential in electronic component production to prevent static discharge that can damage sensitive circuits and components.
Medical Packaging
Used in medical packaging to prevent static electricity buildup, which can attract contaminants and compromise product sterility.
Automotive Components
Applied in automotive part manufacturing where protection against static discharge is required for reliable electronic system operation.
Printing Industry
Prevents static electricity buildup during printing processes, ensuring proper ink adhesion and preventing printing defects.
Tape Manufacturing
Serves as release liner in adhesive tape production, preventing static buildup within tape rolls.
Key Application Scenarios
  • Electronics Manufacturing and Assembly: Protects sensitive components during production, transportation, and storage
  • Cleanroom Environments: Provides barrier against static charges and contamination in semiconductor, pharmaceutical, and biotechnology industries
  • Automotive and Aerospace: Ensures reliable operation of electronic systems and control panels in vehicles and aircraft
  • ESD-Sensitive Product Packaging: Shields integrated circuits, computer components, and medical devices from static damage
  • Research Laboratories: Protects equipment and delicate samples where static charges can interfere with sensitive measurements
Product Features
The primary feature of PET anti-static coated film is its ability to prevent static electricity buildup through conductive coatings on one or both sides, allowing charges to dissipate effectively. This improves handling, processing, and protection of sensitive components. While transparent or translucent films are common, various colors including green, pink, blue, and yellow are available for identification and quality control purposes.
Manufacturing Process
The coating process involves unwinding PET film and applying antistatic fluid using gravure, reverse gravure, Mayer rod, or air knife methods. The coated film then passes through a drying oven to remove solvents before being rewound. Process control ensures consistent coating thickness and product quality, with effectiveness dependent on antistatic fluid compatibility with PET film.
Product Images

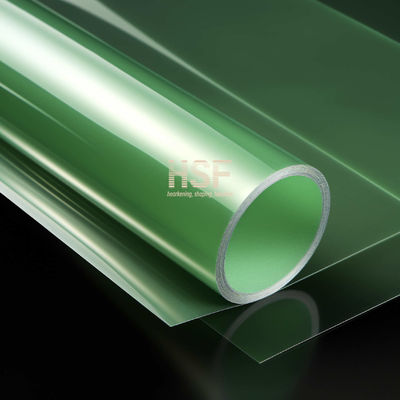

50μm Green PET Anti Static Film 1360mm Wide Polyester Film for Electronics and Medical Packaging 0 50μm Green PET Anti Static Film 1360mm Wide Polyester Film for Electronics and Medical Packaging 1
