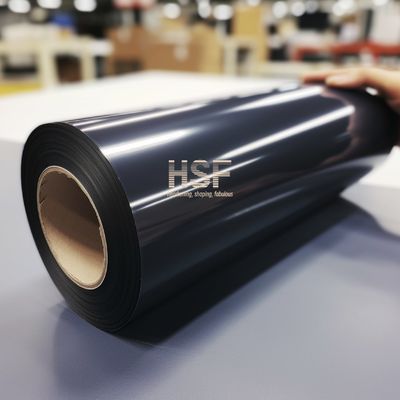

50μm Black Anti Static Film Silicone Coated PET Film 1360mm for Electronics and Medical Packaging

Products

High Density Polyethylene Film

Mono Oriented Polypropylene Film

Volatile Corrosion Inhibitor Film

50μm Black Anti Static Film Silicone Coated PET Film 1360mm for Electronics and Medical Packaging

MOQ:	30000 s.q.m.
Standard Packaging:	EPE film + PE wrap + Processed wooden pallet
Delivery Period:	within 45 days, depends on the reserve of raw materials
Payment Method:	T/T,L/C
Supply Capacity:	30000 kg per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

50B1AS-SS

Material:

Polyethylene Terephthalate

Color:

Black

Transparency:

Opaque

Thickness:

50 μm

Thickness Deviation:

Plus Minus 3 μm

Width Range:

Up To 1360mm

Sleeve ID:

Winding Length:

8000 Meters Or So

Minimum Order Quantity:

30000 s.q.m.

Packaging Details:

EPE film + PE wrap + Processed wooden pallet

Delivery Time:

within 45 days, depends on the reserve of raw materials

Payment Terms:

T/T,L/C

Supply Ability:

30000 kg per week

Highlight:

50um black PET Anti Static Film

50um black silicone coated pet film

silicone coated pet film 1360mm

Product Description

50μm Black Anti Static Film Silicone Coated PET Film 1360mm

50 μm black PET anti static film, available in multiple colors, designed for electronics, medical, automotive, and printing applications.

Technical Specifications

S/N	Item	Value	Test Method
1	Backing Film Type	Black PET	DIN EN ISO 10677
2	Release Force (gf/25mm)	8	DIN EN 1464
3	Sub-sequent Adhesion Rate (%)	89	DIN EN 1943
4	Total Thickness (μm)	50	DIN EN ISO 4593
5	Sheet Resistance	10^6-10^11 Ω/sq	DIN EN 1149-1
6	Tensile Strength	MD: 172 N/mm² TD: 192 N/mm²	DIN EN ISO 527-3
7	Elongation @ break (%)	MD: 98% TD: 75%	DIN EN ISO 527-3

Industry Applications

PET anti-static coated film is widely used across multiple industries due to its excellent static discharge properties.

Primary Application Areas

Electronics: Protects sensitive circuits and components from static discharge damage during production
Medical: Prevents static buildup in medical packaging to maintain product sterility
Automotive: Provides static discharge protection for automotive parts and components
Printing: Prevents static electricity buildup during printing processes for better ink adhesion
Tape Industry: Serves as release liner in adhesive tape manufacturing to prevent static buildup

Specialized Application Scenarios

Photography and Darkroom Applications: Light-blocking and anti-static layer for photographic films
Industrial Equipment Protection: Protective shield against static charges for sensitive machinery
Audiovisual and Home Theater: Light-blocking layer for projector screens enhancing contrast
Confidential Document Security: Privacy layer for windows and confidential documents
Architectural and Interior Design: Modern aesthetic application for glass surfaces with glare reduction

Key Features

The primary feature of PET anti-static coated film is its ability to prevent static electricity buildup through conductive coating on one or both sides. This allows charges to dissipate, improving handling, processing, and protection of sensitive components. Available in transparent/translucent and various identification colors including pink, blue, and yellow for quality control purposes.

Manufacturing Process

The coating process involves unwinding PET film and applying antistatic fluid through methods such as gravure, reverse gravure, Mayer rod, or air knife. The coated film then passes through a drying oven to remove solvents before being rewound. Process control is critical for consistent coating thickness and product quality.

Note: Specific suitability for particular applications should be verified based on industry requirements, manufacturer guidelines, and available customization options.
