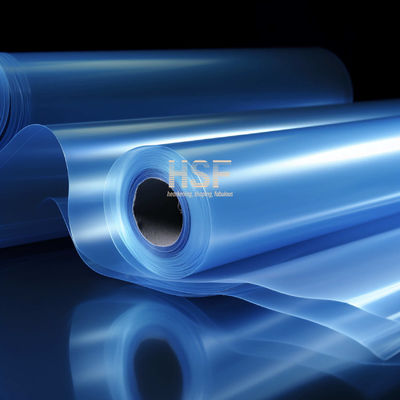

75μm Blue Anti Static PET Film for Electronics and Cleanroom Applications

Products

High Density Polyethylene Film

Mono Oriented Polypropylene Film

Volatile Corrosion Inhibitor Film

75μm Blue Anti Static PET Film for Electronics and Cleanroom Applications

MOQ:	30000 s.q.m.
Standard Packaging:	EPE film + PE wrap + Processed wooden pallet
Delivery Period:	within 45 days, depends on the reserve of raw materials
Payment Method:	T/T,L/C
Supply Capacity:	30000 kg per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

75B1AS-SS

Material:

Polyethylene Terephthalate

Color:

Transparency:

Translucent

Thickness:

75 μm

Thickness Deviation:

Plus Minus 3 μm

Width Range:

Up To 1360

Sleeve ID:

Winding Length:

8000 Meters Or So

Minimum Order Quantity:

30000 s.q.m.

Packaging Details:

EPE film + PE wrap + Processed wooden pallet

Delivery Time:

within 45 days, depends on the reserve of raw materials

Payment Terms:

T/T,L/C

Supply Ability:

30000 kg per week

Highlight:

anti static polyethylene terephthalate film

75um blue polyethylene terephthalate film

anti static pet film sheet

Product Description

75μm Blue Anti-Static Polyethylene Terephthalate Film Sheet

75 μm blue PET anti-static film, available in multiple colors, designed for electronics, medical, automotive, and printing applications.

Technical Specifications

S/N	Item	Value	Test Method
1	Backing Film Type	Blue PET	DIN EN ISO 10677
2	Release Force (gf/25mm)	8	DIN EN 1464
3	Sub-sequent Adhesion Rate (%)	89	DIN EN 1943
4	Total Thickness (μm)	75	DIN EN ISO 4593
5	Sheet Resistance	10^6-10^11 Ω/sq	DIN EN 1149-1
6	Tensile Strength	MD: 178 MPa TD: 191 MPa	DIN EN ISO 527-3
7	Elongation @ break (%)	MD: 117% TD: 101%	DIN EN ISO 527-3

Application Scenarios

Electronics Manufacturing: Protective layer or packaging for circuit boards and sensitive electronic components during manufacturing, assembly, and transportation
Cleanroom Environments: Curtains, partitions, or covers in pharmaceutical, biotechnology, and microelectronics cleanrooms
Static-Sensitive Product Packaging: Protective barrier for electronic components, integrated circuits, and delicate instruments
Printing and Graphics: Protective layer preventing static-related ink smudging and toner transfer issues
Display and Signage: Anti-static shield for screens, touch panels, and signage boards

Key Features

PET anti-static coated film prevents static electricity buildup through conductive coating on one or both sides, allowing charges to dissipate. This improves handling, processing, and protection of sensitive components. Available in transparent/translucent and various colors including pink, blue, and yellow for identification and quality control purposes.

Manufacturing Process

The coating process involves unwinding PET film and applying antistatic fluid using gravure, reverse gravure, Mayer rod, or air knife methods. The coated film passes through a drying oven to remove solvents before being rewound. Process effectiveness depends on antistatic fluid compatibility and controlled coating thickness for consistent quality.

Tags:

Products

MOQ:	30000 s.q.m.
Standard Packaging:	EPE film + PE wrap + Processed wooden pallet
Delivery Period:	within 45 days, depends on the reserve of raw materials
Payment Method:	T/T,L/C
Supply Capacity:	30000 kg per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HSF

Model Number

75B1AS-SS

Material:

Polyethylene Terephthalate

Color:

Blue

Transparency:

Translucent

Thickness:

75 μm

Thickness Deviation:

Plus Minus 3 μm

Width Range:

Up To 1360

Sleeve ID:

Winding Length:

8000 Meters Or So

Minimum Order Quantity:

30000 s.q.m.

Packaging Details:

EPE film + PE wrap + Processed wooden pallet

Delivery Time:

within 45 days, depends on the reserve of raw materials

Payment Terms:

T/T,L/C

Supply Ability:

30000 kg per week

Highlight

anti static polyethylene terephthalate film

75um blue polyethylene terephthalate film

anti static pet film sheet

Product Description

75μm Blue Anti-Static Polyethylene Terephthalate Film Sheet

75 μm blue PET anti-static film, available in multiple colors, designed for electronics, medical, automotive, and printing applications.

Technical Specifications

S/N	Item	Value	Test Method
1	Backing Film Type	Blue PET	DIN EN ISO 10677
2	Release Force (gf/25mm)	8	DIN EN 1464
3	Sub-sequent Adhesion Rate (%)	89	DIN EN 1943
4	Total Thickness (μm)	75	DIN EN ISO 4593
5	Sheet Resistance	10^6-10^11 Ω/sq	DIN EN 1149-1
6	Tensile Strength	MD: 178 MPa TD: 191 MPa	DIN EN ISO 527-3
7	Elongation @ break (%)	MD: 117% TD: 101%	DIN EN ISO 527-3

Application Scenarios

Electronics Manufacturing: Protective layer or packaging for circuit boards and sensitive electronic components during manufacturing, assembly, and transportation
Cleanroom Environments: Curtains, partitions, or covers in pharmaceutical, biotechnology, and microelectronics cleanrooms
Static-Sensitive Product Packaging: Protective barrier for electronic components, integrated circuits, and delicate instruments
Printing and Graphics: Protective layer preventing static-related ink smudging and toner transfer issues
Display and Signage: Anti-static shield for screens, touch panels, and signage boards

Key Features

Manufacturing Process
