75μm Red Translucent Polyethylene Terephthalate Anti Static Film for Electronics and Automotive

Products

High Density Polyethylene Film

Mono Oriented Polypropylene Film

Volatile Corrosion Inhibitor Film

75μm Red Translucent Polyethylene Terephthalate Anti Static Film for Electronics and Automotive

MOQ:	30000 s.q.m.
Standard Packaging:	EPE film + PE wrap + Processed wooden pallet
Delivery Period:	within 45 days, depends on the reserve of raw materials
Payment Method:	T/T,L/C
Supply Capacity:	30000 kg per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

75R1AS-SS

Material:

Polyethylene Terephthalate

Color:

Transparency:

Translucent

Thickness:

75 μm

Thickness Deviation:

Plus Minus 3 μm

Width Range:

Up To 1360

Sleeve ID:

Winding Length:

8000 Meters Or So

Minimum Order Quantity:

30000 s.q.m.

Packaging Details:

EPE film + PE wrap + Processed wooden pallet

Delivery Time:

within 45 days, depends on the reserve of raw materials

Payment Terms:

T/T,L/C

Supply Ability:

30000 kg per week

Highlight:

Polyethylene terephthalate Anti Static Film

Anti Static Polyethylene terephthalate film

Polyethylene terephthalate film 75 micron

Product Description

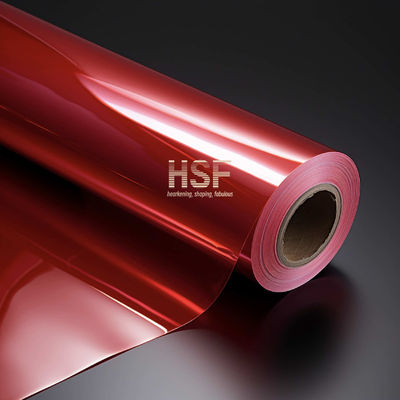

Polyethylene Terephthalate Anti Static Film 75μm

75μm red PET anti static film, available in multiple colors, designed for electronics, medical, automotive, and printing applications.

Technical Specifications

S/N	Item	Value	Test Method
1	Backing Film Type	Red PET	DIN EN ISO 10677
2	Release Force (gf/25mm)	9	DIN EN 1464
3	Sub-sequent Adhesion Rate (%)	91	DIN EN 1943
4	Total Thickness (μm)	75	DIN EN ISO 4593
5	Sheet Resistance	10^6-10^11 Ω/sq	DIN EN 1149-1
6	Tensile Strength	MD: 181 MPa TD: 194 MPa	DIN EN ISO 527-3
7	Elongation @ break (%)	MD: 115% TD: 98%	DIN EN ISO 527-3

Application Scenarios

Automotive Interior Enhancement: Used to enhance interior aesthetics of automotive vehicles, applied to surfaces such as dashboards, center consoles, or door panels. Anti-static properties reduce dust attraction, maintaining clean interior appearance.
Retail Visual Merchandising: Creates eye-catching displays, signage, and branding elements in retail environments. Bold red color attracts attention and highlights products or promotional messages.
Product Customization and Branding: Applied to packaging, labels, or promotional materials for product customization. Red color provides distinct visual identity and brand messaging.
Event Decor and Theming: Creates vibrant atmosphere during special events, trade shows, or exhibits. Red color adds energy and excitement to event aesthetics.
Stage and Set Design: Used for backdrops, props, and scenic elements in performances, concerts, or theatrical productions. Red color evokes emotions and sets mood.

Please note that specific suitability for particular applications should be verified based on industry requirements, manufacturer guidelines, and available customization options.

Key Features

The primary feature of PET anti-static coated film is its ability to prevent static electricity buildup. With a conductive coating on one or both sides, charges dissipate effectively, preventing static accumulation. This results in improved handling, processing, and protection of sensitive components and products.

Color Options

While transparent or translucent (colorless) films are commonly used, other colors including pink, blue, and yellow are available depending on application requirements. Colors serve identification purposes to differentiate film types and facilitate quality control.

Coating Process

To apply antistatic fluid to produced PET film, the film is unwound from its original roll and passed through a coating applicator using methods such as gravure, reverse gravure, Mayer rod, or air knife. After coating, the film passes through a drying oven to remove solvent, then is rewound onto a new roll.

Process effectiveness depends on antistatic fluid type and compatibility with PET film. Careful control maintains consistent coating thickness and avoids defects in the final product.
