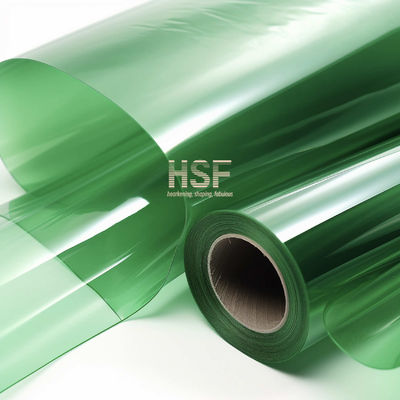

Translucent Green 75 μm PET Anti Static Film with Anti Scratch for Printing and Graphic Arts

Products

High Density Polyethylene Film

Mono Oriented Polypropylene Film

Volatile Corrosion Inhibitor Film

Translucent Green 75 μm PET Anti Static Film with Anti Scratch for Printing and Graphic Arts

MOQ:	30000 s.q.m.
Standard Packaging:	EPE film + PE wrap + Processed wooden pallet
Delivery Period:	within 45 days, depends on the reserve of raw materials
Payment Method:	T/T,L/C
Supply Capacity:	30000 kg per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

75G1AS-SS

Material:

Polyethylene Terephthalate

Color:

Green

Transparency:

Translucent

Thickness:

75 μm

Thickness Deviation:

Plus Minus 3 μm

Width Range:

Up To 1360

Sleeve ID:

Winding Length:

8000 Meters Or So

Minimum Order Quantity:

30000 s.q.m.

Packaging Details:

EPE film + PE wrap + Processed wooden pallet

Delivery Time:

within 45 days, depends on the reserve of raw materials

Payment Terms:

T/T,L/C

Supply Ability:

30000 kg per week

Highlight:

Translucent green PET anti scratch film

75um pet anti scratch film

pet anti scratch film for Printing

Product Description

RoHS Translucent Green PET Anti Scratch Film For Printing And Graphic Arts

75 μm green PET anti static film, available in many colors, for electronics, medical, automotive and printing applications.

Technical Specifications

S/N	Item	Value	Test Method
1	Backing Film Type	Green PET	DIN EN ISO 10677
2	Release Force (gf/25mm)	11	DIN EN 1464
3	Sub-sequent Adhesion Rate (%)	93	DIN EN 1943
4	Total Thickness (μm)	75	DIN EN ISO 4593
5	Sheet Resistance	10^6-10^11 Ω/sq	DIN EN 1149-1
6	Tensile Strength	MD: 180 MPa TD: 193 MPa	DIN EN ISO 527-3
7	Elongation @ break (%)	MD: 120% TD: 105%	DIN EN ISO 527-3

Application Scenarios

Electronics Manufacturing: Protective layer for circuit boards and electronic devices during manufacturing, assembly, and transportation. The vibrant green color facilitates easy visual identification.
Controlled Environments: Essential for cleanrooms as curtains, partitions, or covers to maintain electrostatic discharge-safe atmosphere and protect sensitive equipment.
Secure Packaging: Ideal for packaging static-sensitive items including electronic components, integrated circuits, and precision instruments for safe transportation and storage.
Printing and Graphic Arts: Reliable protective layer for printed materials, preventing static-related issues like ink smudging and improper toner transfer.
Display Enhancement: Protective layer for screens, touch panels, and signage boards that mitigates static-related problems while preserving display clarity.

Key Features

The main feature of PET anti-static coated film is its ability to prevent static electricity buildup. It features a conductive coating on one or both sides that allows charges to dissipate, improving handling, processing, and protection of sensitive components. While transparent or translucent films are commonly used, colors like pink, blue, and yellow are also available for identification and quality control purposes.

Manufacturing Process

The coating process involves unwinding PET film and applying antistatic fluid through coating applicators using gravure, reverse gravure, Mayer rod, or air knife methods. The film then passes through a drying oven to remove solvents before being rewound. Process effectiveness depends on antistatic fluid compatibility with PET film and careful control of coating thickness consistency.
