50μm Blue Translucent PET Non Silicone Release Film for Electronics and Automotive Applications

Products

High Density Polyethylene Film

Mono Oriented Polypropylene Film

Volatile Corrosion Inhibitor Film

50μm Blue Translucent PET Non Silicone Release Film for Electronics and Automotive Applications

MOQ:	30000 s.q.m.
Standard Packaging:	EPE film + PE wrap + Processed wooden pallet
Delivery Period:	within 45 days, depends on the reserve of raw materials
Payment Method:	T/T,L/C
Supply Capacity:	30000 kg per week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Model Number

50BSSNSi

Material:

Polyethylene Terephthalate

Color:

Transparency:

Translucent

Thickness:

50 μm

Thickness Deviation:

Plus Minus 3 μm

Sleeve ID:

Winding Direction:

Release Side Wound In, Or As Per Requirement

Winding Length:

6000 Meters Or So

Minimum Order Quantity:

30000 s.q.m.

Packaging Details:

EPE film + PE wrap + Processed wooden pallet

Delivery Time:

within 45 days, depends on the reserve of raw materials

Payment Terms:

T/T,L/C

Supply Ability:

30000 kg per week

Highlight:

50 micron PET micron Non Silicone Release Film

50 micron pet film roll

Non Silicone Release pet film roll

Product Description

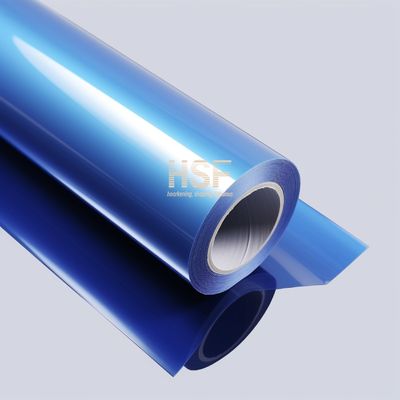

50μm PET Non Silicone Release Film Roll

High-performance 50 micron blue PET non-silicone coated release film designed for demanding applications in electronics, medical, automotive, and printing industries.

Key Applications

Automotive Industry: Protective release liner for automotive components during manufacturing, assembly, and transportation
Electronics & Electrical: Protective layer for circuit boards, displays, and sensitive electronic devices
Medical & Healthcare: Release liner for wound dressings, transdermal patches, and medical tapes
Labeling & Packaging: Release liner for labels, stickers, and adhesive-backed products
Arts & Crafts: Backing material for adhesive-backed shapes, cut-outs, and artistic elements

Key Advantages

Eliminates silicon transfer contamination issues
Compatible with silicone and gel applications
Cost-effective alternative to fluorine-coated films
Vibrant blue color for easy identification and differentiation

Technical Specifications

S/N	Test Item	Unit	Standard	Value	Test Method
1	Thickness	μm	50 ±2%	49.72	GB/T6672
2	Color	-	Blue	-	-
3	Tensile Strength	MD Mpa	≥180	187	GB/T 1040.3
		TD Mpa	≥190	196	GB/T 1040.3
4	Elasticity Modulus	MD Mpa	/	4144	-
		TD Mpa	/	4230	-
5	Elongation @ break	MD %	≤200	148	-
		TD %	≤200	139	-
6	Thermal Shrinkage	MD %	≤1.5	0.96	150℃/30min
		TD %	≤0.0	0.00	200℃/10min
7	Friction Coefficient	F/M-US %	≤0.65	0.5	GB/T 10006
		F/M-UK %	≤0.50	0.3	GB/T 10006
8	Haze	%	≤5	2.99	GB/T2410
9	Luminousness	%	≥86	89.4	GB/T2410
10	Glossiness	%	≥100	133	GB/T8807
11	Wetting Tension	mN/m	≥50	58	GB/T14216
12	Release Force	Inner gf/25mm	3-5	4	Final 10, 20min.
		Outer gf/25mm	10-15	12	Final 10, 20min.
13	Sub-sequent Adhesion Rate	Inner %	≥85	90	-
		Outer %	≥85	92	-

Product Images
