| MOQ: | 10000 s.q.m |
| Standard Packaging: | EPE film + PE wrap + Processed wooden pallet |
| Delivery Period: | within 45 days depends on the reserve of raw materials |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 100000 kg per week |

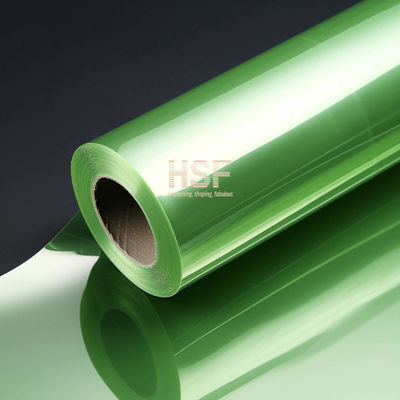

36 μm light green silicone coated release film available in both thermal or uv cure for tapes, labels and packaging etc.
36 micron light green PET single side silicone coated release film is mainly used in a variety of applications where a high-performance
release liner is required. The film's properties make it suitable for a wide range of applications, including:
1. Pressure-sensitive Labels:
The clear PET film's high-quality surface finish and excellent clarity make it an ideal choice for producing pressure-sensitive labels.
The film's silicone coating ensures that the label can be easily removed without leaving behind any adhesive residue.
2. Die-Cut Adhesive Components:
The release liner is suitable for die-cutting and producing adhesive components such as tapes and gaskets. The film's excellent release
properties ensure that the adhesive stays intact during processing, while the clarity of the PET film makes it easy to align the adhesive
component on the substrate.
3. Protective Films:
The film's high tensile strength and puncture resistance make it a perfect choice for producing protective films for various applications.
The release liner can be used to protect surfaces from scratches, abrasions, and other types of damage during manufacturing, storage,
and transportation.
4. Photo-Receptive Films:
The clear PET film's excellent clarity and superior dielectric properties are ideal for producing photo-receptive films used in the printing and
imaging industry.
5. Insulating Materials:
The film's high dielectric strength and excellent insulation properties make it an excellent choice for producing insulation components used in
the electrical and electronics industry.
Overall, the 36 micron light green PET single side silicone coated release film is a versatile material that can be used in various applications
requiring a high-performance release liner. The film's excellent dielectric and insulation properties, high tensile strength, and superb clarity are
all qualities that make it an ideal choice in the label, packaging, and electronics industries.
| S/N | Test Item | Unit | Standard | Value | Test Method | |
| 1 | Thickness | μm | 36 ±3% | 38.01 | ASTM D-374 | |
| 2 | Color | - | Transparent | - | - | |
| 3 | Tensile Strength | MD | Mpa | ≥180 | 207 | ASTM D-882 |
| TD | Mpa | ≥180 | 252 | |||
| 4 | Elasticity Modulus | MD | Mpa | ≥3500 | 4333 | |
| TD | Mpa | ≥3500 | 4727 | |||
| 5 | Elongation @ break (%) | MD | % | ≤100 | 173 | |
| TD | % | ≤100 | 129 | |||
| 6 | Thermal Shrinkage | MD | % | ≤3.5 | 2.18 | ASTM D-1204 |
| TD | % | ≤0.5 | 0.06 | |||
| 7 | Friction Coefficient (Corona/None) | F/M-US | % | ≤0.55 | 0.48 | ASTM D-1894 |
| F/M-UK | % | ≤0.50 | 0.37 | |||
| 8 | Haze | % | ≤4.0 | 3 | ASTM D-1003 | |
| 9 | Luminousness | % | ≥88 | 91 | ASTM D-1003 | |
| 10 | Glossiness 45° | % | ≥120 | 127 | ASTM D-2457 | |
| 11 | Wetting Tension | mN/m | ≥54 | 60 | ASTM D-2578 | |
| 12 | Release Force | gf/25mm | 3-5 | 4 | Final 10, 20min. | |
