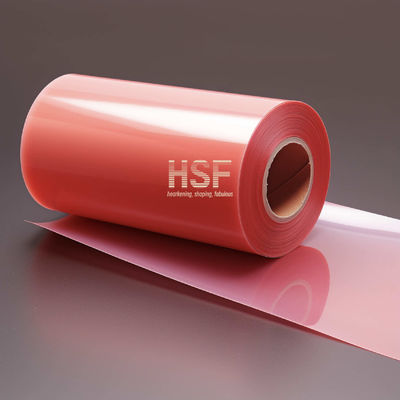

20μm Translucent Red Polyethylene Terephthalate Non Silicone Release Film for Electronics and Medical Applications

MOQ: 30000 s.q.m.
Standard Packaging: EPE film + PE wrap + Processed wooden pallet
Delivery Period: within 45 days, depends on the reserve of raw materials
Payment Method: T/T,L/C
Supply Capacity: 30000 kg per week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HSF
Model Number
20RSSNSi
Material:
Polyethylene Terephthalate
Color:
Red
Transparency:
Translucent
Thickness:
20 μm
Thickness Deviation:
Plus Minus 3 μm
Sleeve ID:
6"
Winding Direction:
Release Side Wound In, Or As Per Requirement
Winding Length:
16000 Meters Or So
Minimum Order Quantity:
30000 s.q.m.
Packaging Details:
EPE film + PE wrap + Processed wooden pallet
Delivery Time:
within 45 days, depends on the reserve of raw materials
Payment Terms:
T/T,L/C
Supply Ability:
30000 kg per week
Highlight:

non silicone coated translucent polyester film

,

20um translucent polyester film

,

Translucent red polyester film

Product Description
20μm Translucent Red Non Silicone Coated Polyester Film
20 μm red PET non silicone coated release film for electronics, medical, automotive and printing applications.
Clear PET non-silicone coated release film is a type of film used in various applications where a release liner is required. This film is made from clear polyester (PET) coated with a non-silicon release agent on one side.
Common Applications
Labels
The film is used as a backing material for labels, stickers, and decals. The non-silicone release coating allows easy separation from the backing for application to desired surfaces.
Medical Devices
Used as a liner for medical devices such as wound dressings or transdermal patches. The non-silicone coating prevents contamination from the release liner, maintaining sterility.
Packaging
Can be used as a release liner for packaging materials that need to be easily opened, such as pouches or bags. The clear PET film allows content visibility while providing a barrier against moisture and contaminants.
Electronics
Used as a release liner for electronic components such as adhesive tapes or protective films. The non-silicone coating prevents damage or interference to electronic devices during the release process.
Additional Application Scenarios
  • Automotive Trim and Decals: Used in the automotive industry for trim components and decals as a protective layer during manufacturing, assembly, or transportation.
  • Promotional Labels and Stickers: Serves as a protective backing for printed labels or stickers, ensuring easy removal and application with enhanced visibility.
  • Arts and Crafts: Used as a backing or carrier for artistic elements such as adhesive-backed shapes, cut-outs, or embellishments.
  • Die-cutting and Stamping Processes: Acts as a protective layer between die-cut or stamped material and cutting/stamping tools.
  • Industrial Labeling and Signage: Used as a protective layer for printed labels or signs in industrial settings for color-coding and enhanced visibility.
Please note that the specific suitability of the 20 μm red PET non-silicone coated release film for a particular application should be verified based on industry requirements, manufacturer guidelines, and customization options available.
Technical Specifications
S/N Test Item Test Standard Unit Results
1 Thickness DIN53370 μm 19.46
2 Color DIN EN ISO 11664-4 ΔE < 3
3 Tensile Strength MD DIN EN ISO 527-3 N/mm² 182
TD N/mm² 216
4 F-5 MD DIN EN ISO 8295 N/mm² 97.8
TD N/mm² 89.4
5 Elongation @ break (%) MD DIN EN ISO 527-3 % 116
TD % 96
6 Elasticity Modulus MD DIN EN ISO 527-3 N/mm² 3565
TD N/mm² 3840
7 Friction Coefficient F/M-US DIN EN ISO 8295 μₛ 0.411
F/M-UK μₖ 0.315
8 Haze DIN EN ISO 14782 % 70.6
9 Luminousness DIN EN ISO 13468-1 % 75.8
10 Glossiness DIN EN ISO 2813 % 26.5-28
11 Thermal Shrinkage MD DIN EN ISO 14616 % 1.5
TD % 0
12 Wetting Tension DIN ISO 8296 mN/m 58
13 Release Force DIN EN 1464 gf/25mm 3
14 Sub-sequent Adhesion Rate DIN EN 1943 % 87%
20μm Translucent Red Polyethylene Terephthalate Non Silicone Release Film for Electronics and Medical Applications 0 20μm Translucent Red Polyethylene Terephthalate Non Silicone Release Film for Electronics and Medical Applications 1
